Standard recovery diode(capsule version)
Model: Standard recovery diode(capsule version) PriceRange: Product Standard:
Product Introduction
| Standard recovery diode(capsule version) | |
|

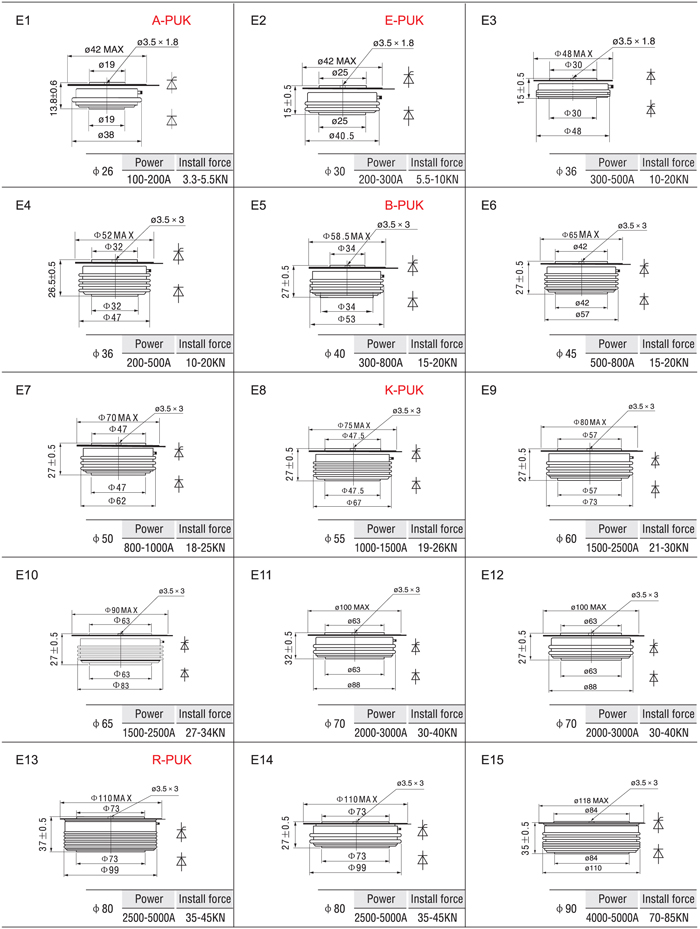

| Type | VRRM | IFAV | IRRM | VFM/IFM | RTH(J-hs) | Tjm | M2 | Outline |
| THS55℃ | 25℃ | |||||||
| V | A | mA | V/A | ℃/W | ℃ | KN | ||
| SD200C | 200-3000 | 200 | 16 | 1.8/600 | 0.090 | 150 | 3.3-5.5 | E1/E2 |
| SD300C | 200-3000 | 300 | 30 | 1.8/900 | 0.065 | 150 | 5.3-10 | E1/E2 |
| SD400C | 200-3000 | 400 | 40 | 1.8/1200 | 0.040 | 150 | 10-20 | E1/E2 |
| SD500C | 200-5000 | 500 | 40 | 1.8/1500 | 0.040 | 150 | 10-20 | E2/E3/E5 |
| SD600C | 200-5000 | 600 | 40 | 1.8/1800 | 0.033 | 150 | 10-20 | E3/E5 |
| SD800C | 200-5000 | 800 | 80 | 2.2/2400 | 0.022 | 150 | 19-26 | E5/E6 |
| SD1000C | 200-5000 | 1000 | 80 | 2.0/3000 | 0.022 | 150 | 19-26 | E5/E6/E8 |
| SD1200C | 200-5000 | 1200 | 120 | 2.2/3000 | 0.020 | 150 | 21-30 | E8 |
| SD1500C | 200-5000 | 1500 | 120 | 2.0/3000 | 0.020 | 150 | 21-30 | E8/E9 |
| SD2000C | 200-5000 | 2000 | 160 | 2.2/4000 | 0.016 | 150 | 30-40 | E11/E12/E13 |
| SD2500C | 200-5000 | 2500 | 200 | 2.2/5000 | 0.011 | 150 | 35-47 | E11/E12/E13 |
| SD3000C | 200-5000 | 3000 | 160 | 2.0/5000 | 0.016 | 150 | 30-40 | E11/E12/E13 |
| SD3500C | 200-5000 | 3500 | 200 | 2.0/5000 | 0.011 | 150 | 35-47 | E14/E15 |
| SD4000C | 200-5000 | 4000 | 200 | 2.0/5000 | 0.009 | 150 | 70-85 | E14/E15 |
| SD5000C | 200-5000 | 5000 | 200 | 2.5/5000 | 0.0135 | 170 | 70-85 | E14/E15 |
