Fast recovery diode(capsule version)

Features
■All diffuse te chinics
■Short recovery time
■Very small anti recovery charge
■Fast soft recovery features
■Ceramic disc type seal
■Bifacial cooled

Typical application
■Motor control
■Induction warm-up
■UPS power
■Charger
■Welder

Explanation
■I²t=I²_FSM×t_W/2:t_W=Half sine wave current when at 50HZ
I²t=0.005I²_FSM(A²S)_FSM
■When at 60HZ I_FSM(8.3ms)=I_FSM(10ms)×1.066,T_j=T_jm
■I²t(8.3ms)=I²t(10ms)×0.943,T_j=T_jm

Type	V_RRM	IF_(AV)	t_rr	Q_rr	I_FSM	I_RRM	V_FM/I_FM	R_TH(j-hs)	T_jm	V²	Outline
		T_HS55℃	100℃		10ms		25℃
	V	A	μs	μc	KA	mA	V/A	℃/W	℃	KN

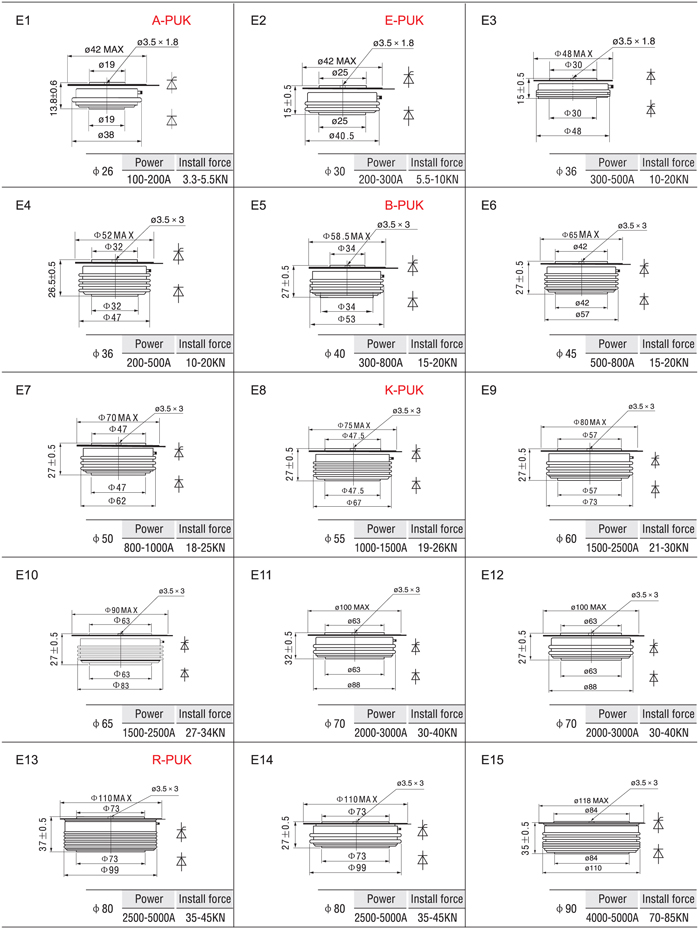

ZK200C	200-3000	200	2	70	2.7	16	2.2/600	0.090	150	3.3-5.5	E1/E2
ZK300C	200-3000	300	3	100	4.1	30	2.4/900	0.065	150	5.3-10	E2
ZK400C	200-3000	400	3	100	5.4	40	2.4/1200	0.040	150	10-20	E2/E3/E5
ZK500C	200-3000	500	3	120	8	40	2.4/1800	0.033	150	10-20	E2/E3/E5
ZK800C	200-3000	800	3	130	10	40	2.6/2400	0.033	150	10-20	E5/E6/E8
ZK1000C	200-3000	1000	4	150	13	50	2.6/3000	0.030	150	15-20	E8
